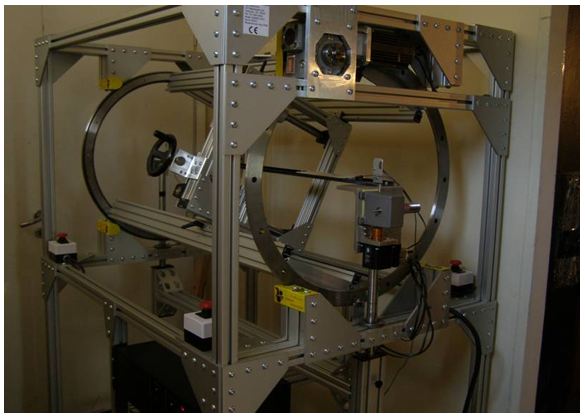

University or Patras SPECT system: We have developed a high resolution scintigraphic and SPECT prototype suitable for mice, rats and rabbits imaging, which is now installed at the Medical School of University of Patras. The system has a 10cm field of view (FOV) and is based on 4 PSPMTs, a pixilated CsI(Na) scintillator, FPGA electronics for DAQ and a custom made gantry. It's spatial resolution is ~2mm.
SPECT/PET/CT prototype: Our existing 2-head PET prototype, with a 5x5cm FOV is being upgraded to 5x10cm FOV and will be equipped with a X-ray system. The system will be combined with the existing SPECT system and will result to a SPECT/PET/CT protoype, which is unique on national and regional level.

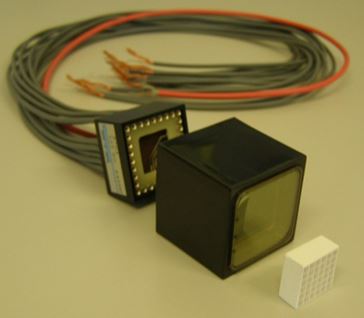

Gamma probe: A gamma probe suitable for sentinel lymph node scanning has been designed and optimized in terms of sensitivity and resolution, using Monte Carlo simulations and is now beeing built.
Some results...
click on the images for more information!
|
SPECT system for University of Patras |
Gamma probe |
|
